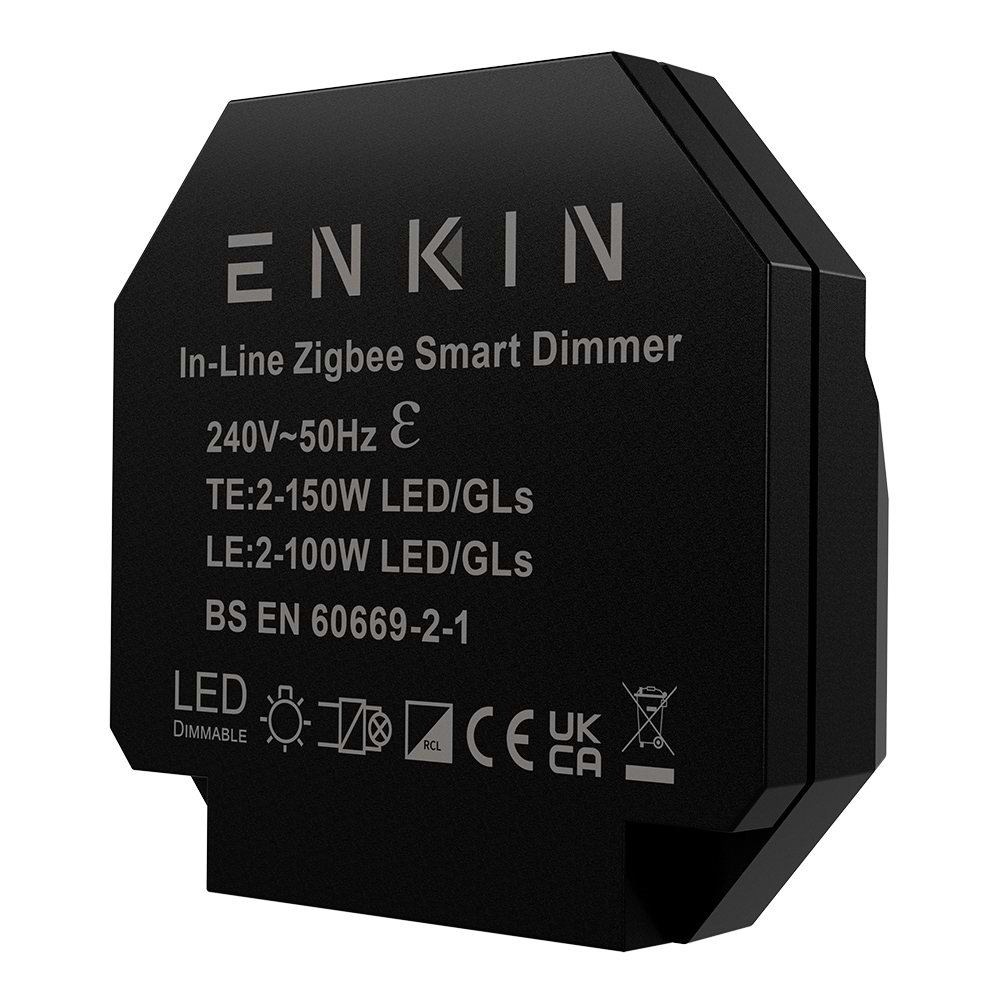

Enkin ZDM150 LED Zigbee Smart Dimmer Module
| Barcode | 5056361299435 |
|---|---|
| Tech Spec |
Download PDF
|
| Instructions | Download PDF |
| Type | Dimming & Smart Home |
| Brand | Enkin |
| Mounting Box Depth (Minimum) | 35mm |
| Guarantee | 5 Years |
| Certification | CE, UKCA, BS EN 60669-2-1 |
| Wattage (w) | 150W |
| Voltage | 220-240V AC |
| Product Size (mm) | 50mm x 49.5mm x 15.1mm |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |
| Pack Size | 1 |
Orders Placed by 4pm dispatched same working day
- Smart dimming with multi-location capability
- Requires a Hub for operation
- For multi-locational dimming only one ZDM150 is required per circuit
The ZDM150 combines an Enkin’s award-winning dimmer with Zigbee technology to allow for smart control through your smartphone via a hub. This allows you to dim, turn your lights on and off, and even pre-set ambient moods for different times of the day.

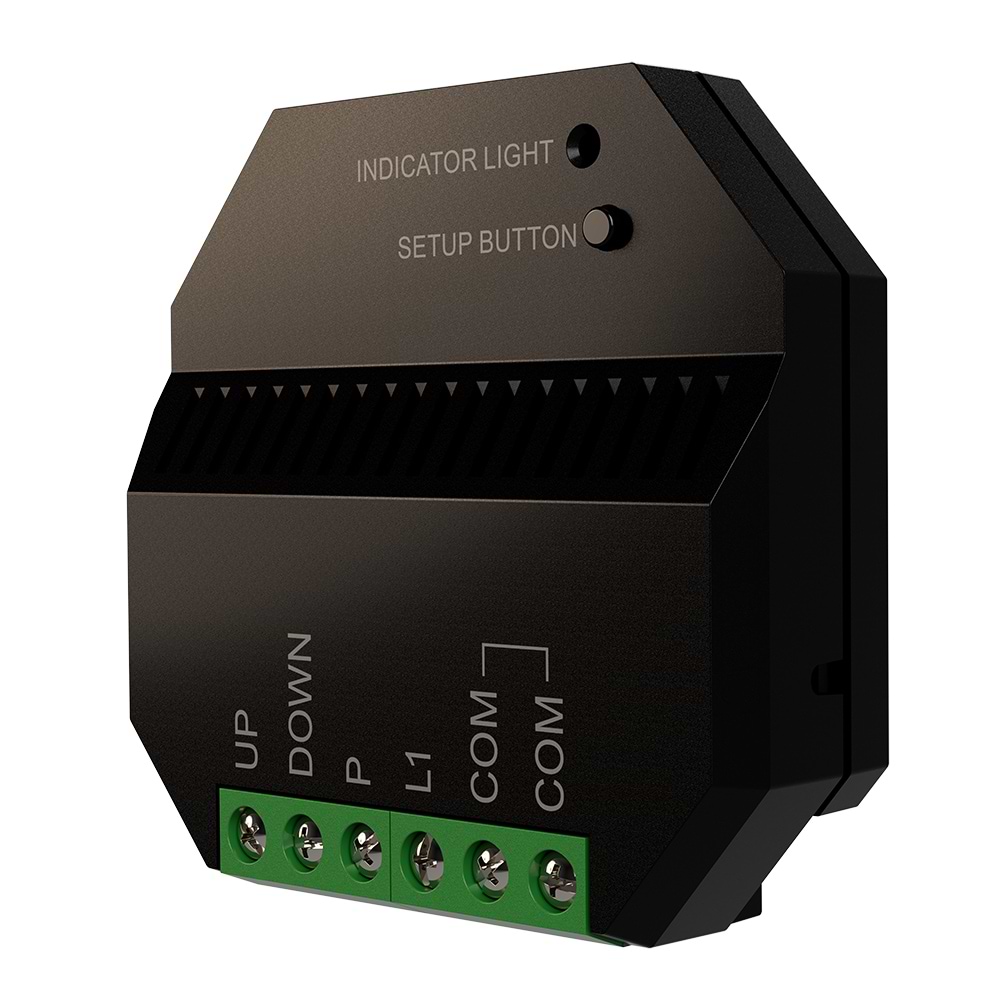

The ZDM150 features a wiring option for both retractive and two-way retractive switches. With this unique feature you can still control your lights via touch, as well as your device. Due to advanced technology, this module requires a small voltage at all times.
Please note, the ZDM150 Zigbee Dimmer requires a Hub for operation. Compatible hubs include Phillips Hue Bridge, Alexa Echo Plus, Samsung, Raspberry, Conbee, Homey, Tuya Zigbee Hub, and Home Assistant.
